CNC V-Bit Angles: How Depth Changes Cut Width

Understand the physical relationship

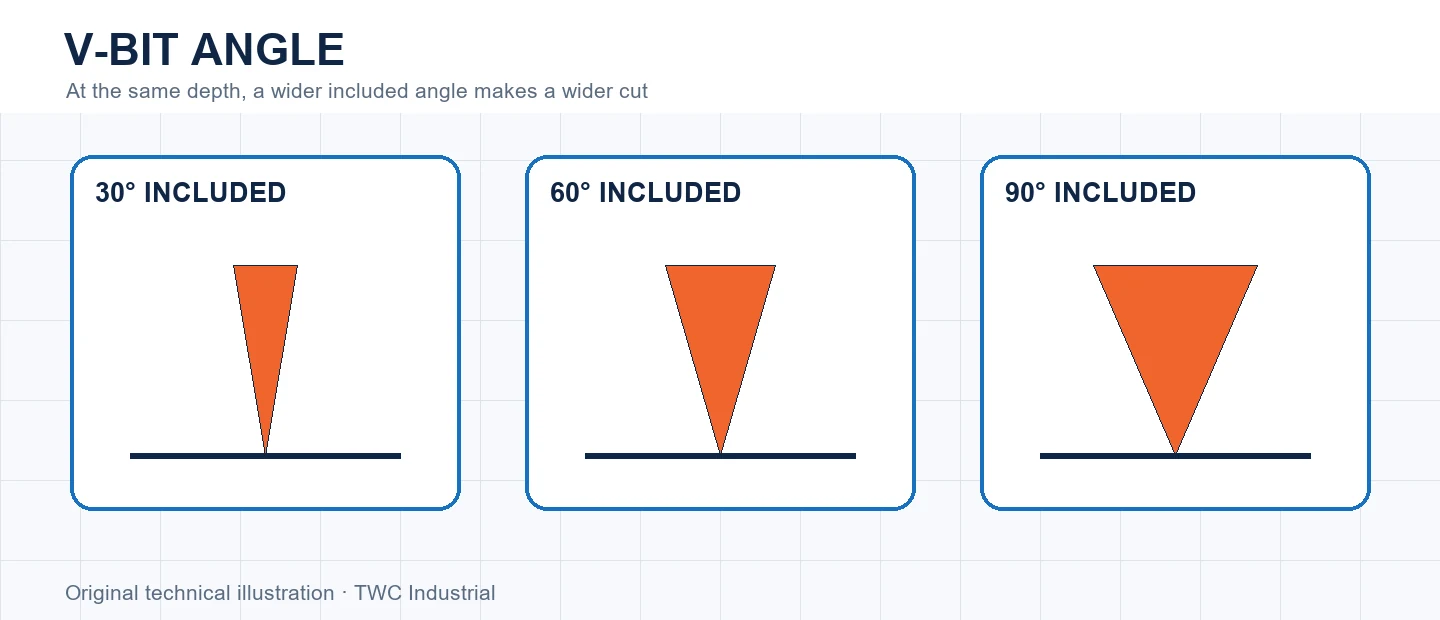

V-carving varies depth so angled sides fit between vectors. A narrow angle reaches deeper for a given width; a wide angle reaches the same width more shallowly. A flat or rounded tip changes the theoretical point and very small detail.

Connect geometry to the cut

Stock thickness variation, an uneven surface or incorrect Z reference changes groove width even when XY motion is perfect. Fine text may demand depths or corners the tool cannot reproduce. Preview calculated depth against cutting length and holder clearance.

Choose for the complete application

Choose angle from desired stroke width, available depth and material. Test the full finish process because paint and sanding can exaggerate or soften grooves. Do not substitute a similar-looking angle without recalculating the path.

Run a controlled comparison

Cut representative geometry in the intended material before committing valuable stock. Hold tool identity, projection, workholding and origin constant while changing one relevant variable. Record chips, sound, heat, edge condition and measured geometry. For cnc v-bit angles: how depth changes cut width, a completed path is not enough; the result must show that angle, tip and Z reference reproduce intended lettering width. Keep the inspected coupon, photograph and CAM revision together.

Create a traceable tool record

Record manufacturer, part number, cutting diameter, shank, cutting length, flute form and measured projection. Add the tested material and operation rather than labeling the cutter only by color or drawer. A small depth error becomes a visible width error on an angled tool. Do not transfer an unexplained offset or operating value to a visually similar tool.

Interpret the evidence before changing CAM

If the cut differs from expectation, separate tool geometry from machine calibration, material variation, workholding and engagement. Measure more than one feature and inspect whether error changes with depth, direction or time. A consistent size offset suggests a different investigation from a mark repeating once per revolution or heat appearing only in corners. For this topic, a small depth error becomes a visible width error on an angled tool. Correct the identified layer, repeat the controlled coupon and document the comparison instead of accumulating compensating settings whose purpose is no longer known.

Verify the full cutting envelope

Recalculate and simulate the cutter, shank and holder at the deepest feature, entry and retract. Confirm the physical tool matches the library and posted program. Review workholding, extraction, guarding and stop controls. A safe-looking centerline cannot prove the collet nut, dust shoe or released stock will remain clear.

Decision table

Practical checklist

1. Confirm included angle.
2. Inspect tip geometry.
3. Preview maximum depth.
4. Cut a lettering sample.
