How to Test CNC Gantry Squareness with Diagonals and Test Cuts

Define what the test can establish

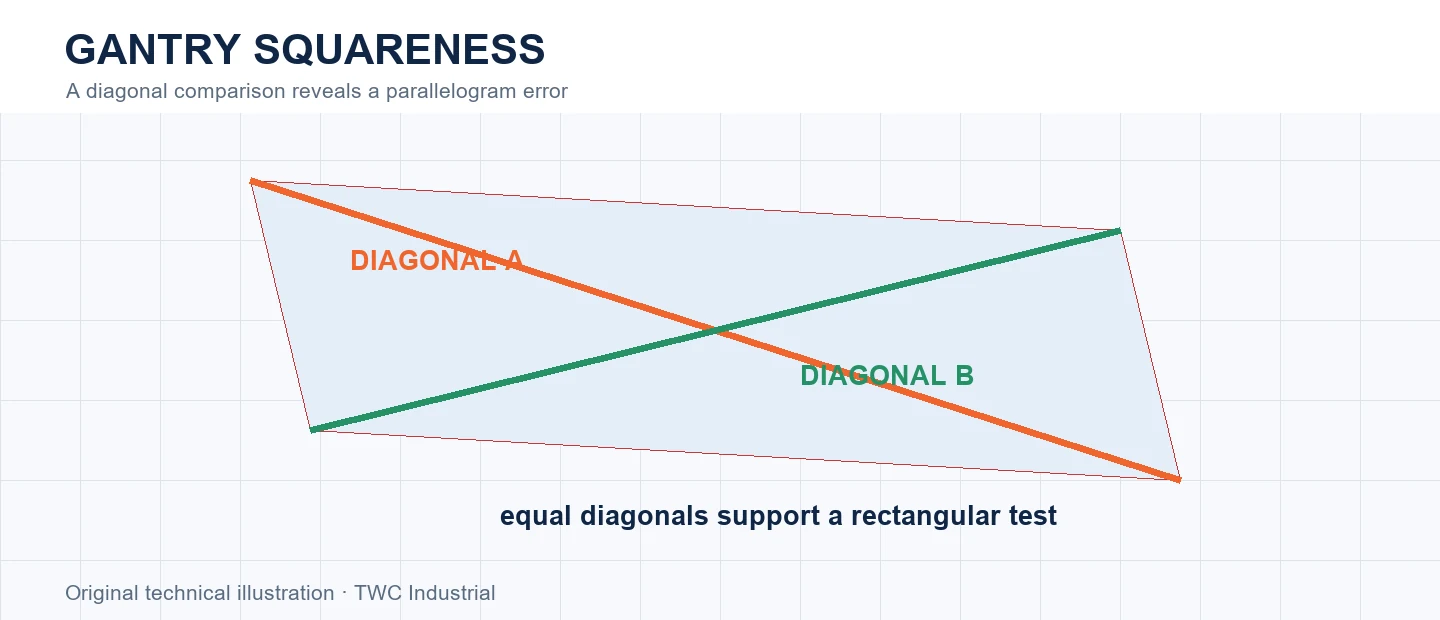

For an ideal rectangle, equal diagonals support a right-angle relationship when opposite sides also behave as intended. A parallelogram can preserve side lengths while diagonals differ. Cutter offset and measurement burrs can alter dimensions, so interpret the full set rather than one diagonal alone.

Control the measurement

Use stable stock and workholding, a suitable finishing pass and identifiable measurement points. Measure X sides, Y sides and both diagonals with an instrument capable of the span. Large tests amplify angular effects but require control of temperature, bow and access.

Read the error pattern

A consistent diagonal difference suggests angular error; both diagonals changing proportionally may indicate scale; opposite sides differing can point toward taper, tool deflection or an unstable artifact. Rotate or relocate a test only when the change helps separate machine coordinates from material behavior.

Use a repeatable test plan

Record machine state, warm-up condition, location, direction, tool or probe, stock, instrument and operator method. Repeat the measurement rather than keeping only the best result. For how to test cnc gantry squareness with diagonals and test cuts, compare magnitude and pattern with the intended tolerance. A result without conditions cannot distinguish a configuration change from temperature, compliance, measurement force or setup variation.

Correct one layer at a time

Begin with the evidence supported by the test. Mechanical squareness, axis scale and cutter effects can produce different combinations of side and diagonal error. After a mechanical or configuration change, return to the same artifact and measurement sequence. Avoid stacking CAM offsets, controller compensation and drawing changes because several corrections can cancel at one size while making another size worse.

Separate measurement error from machine error

Repeat the reading without moving the machine, then repeat after returning to the feature through the same path and through the opposite direction when appropriate. This helps distinguish instrument and contact variation from positioning behavior. Compare a second instrument or reference only when its capability and setup are understood. For this topic, A consistent diagonal difference suggests angular error; both diagonals changing proportionally may indicate scale; opposite sides differing can point toward taper, tool deflection or an unstable artifact. Rotate or relocate a test only when the change helps separate machine coordinates from material behavior. Preserve all raw readings because deleting inconvenient values without an identified cause can make an unstable process look calibrated.

Safety and verification boundary

Follow the machine, controller, spindle, probe and instrument manufacturers’ procedures. Isolate energy before mechanical adjustment, keep body parts clear of motion and verify probe inputs and travel limits at controlled speed. Calibration motion and indicator sweeps can still collide with clamps, stock or fixtures. Keep a new routine under direct supervision.

Decision table

Practical checklist

1. Machine a stable rectangle.
2. Measure four sides.
3. Compare diagonals.
4. Repeat by size/location.
