CNC Accuracy vs Repeatability: Why the Difference Matters

Define what the test can establish

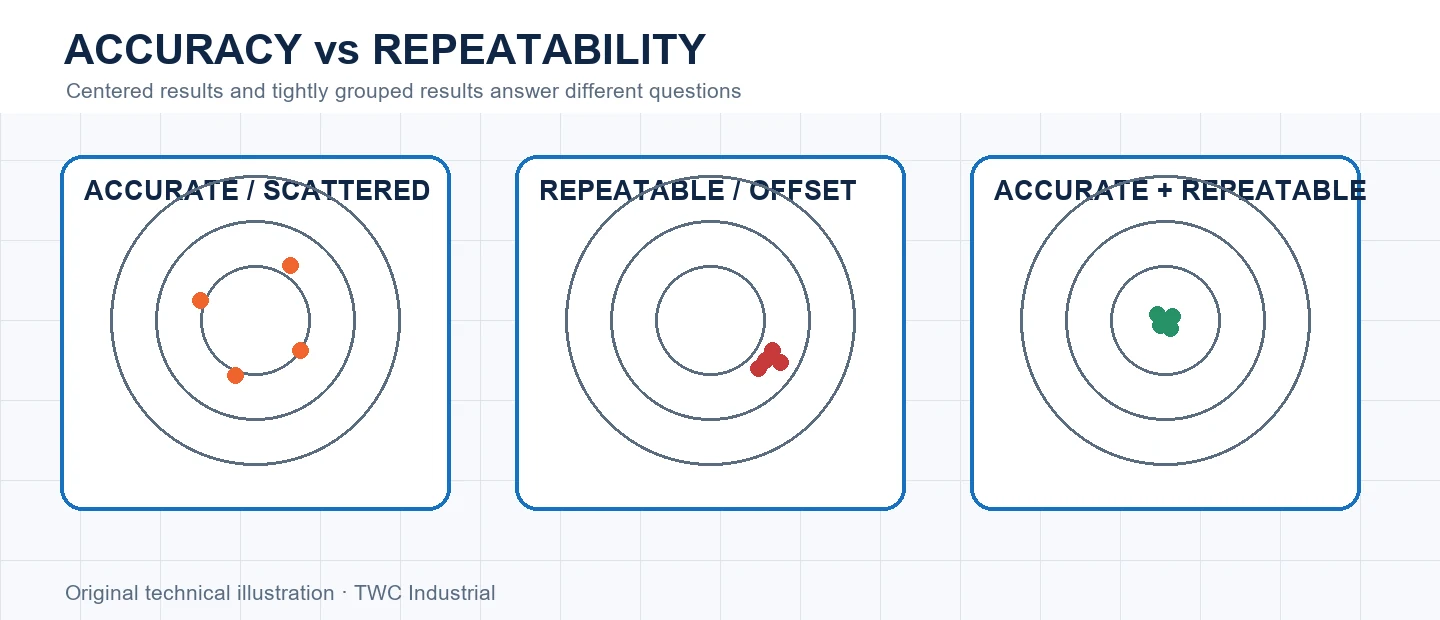

A single measurement cannot reveal distribution. Several parts that cluster away from nominal suggest a systematic component; results scattered around nominal suggest instability or measurement variation. The terms do not replace uncertainty, but they help organize the next investigation.

Control the measurement

Use the same feature, instrument, contact method and environmental conditions for a defined sample. Record every reading in sequence. Instrument resolution and calibration, part temperature, burrs and measurement force can create apparent machine variation, so the measurement process must be capable of resolving the tolerance.

Read the error pattern

Plot deviation from nominal rather than writing pass or fail alone. Look for a stable center, spread, drift with time and differences by direction or table location. Do not average away a reversal effect or taper that has a physical pattern.

Use a repeatable test plan

Record machine state, warm-up condition, location, direction, tool or probe, stock, instrument and operator method. Repeat the measurement rather than keeping only the best result. For cnc accuracy vs repeatability: why the difference matters, compare magnitude and pattern with the intended tolerance. A result without conditions cannot distinguish a configuration change from temperature, compliance, measurement force or setup variation.

Correct one layer at a time

Begin with the evidence supported by the test. A consistent offset may justify a different action from unstable spread, drift or direction-dependent lost motion. After a mechanical or configuration change, return to the same artifact and measurement sequence. Avoid stacking CAM offsets, controller compensation and drawing changes because several corrections can cancel at one size while making another size worse.

Separate measurement error from machine error

Repeat the reading without moving the machine, then repeat after returning to the feature through the same path and through the opposite direction when appropriate. This helps distinguish instrument and contact variation from positioning behavior. Compare a second instrument or reference only when its capability and setup are understood. For this topic, Plot deviation from nominal rather than writing pass or fail alone. Look for a stable center, spread, drift with time and differences by direction or table location. Do not average away a reversal effect or taper that has a physical pattern. Preserve all raw readings because deleting inconvenient values without an identified cause can make an unstable process look calibrated.

Safety and verification boundary

Follow the machine, controller, spindle, probe and instrument manufacturers’ procedures. Isolate energy before mechanical adjustment, keep body parts clear of motion and verify probe inputs and travel limits at controlled speed. Calibration motion and indicator sweeps can still collide with clamps, stock or fixtures. Keep a new routine under direct supervision.

Decision table

Practical checklist

1. Define nominal and tolerance.
2. Measure a sequence.
3. Plot deviations.
4. Separate center from spread.
