Design a CNC Calibration Coupon That Reveals Errors
Combine outside dimensions, pockets, holes, diagonals and repeated features in one traceable coupon without confusing tool and machine effects.
A useful test coupon is not a collection of decorative shapes. Each feature should answer a defined question: scale, squareness, tool offset, circularity, repeatability or depth. The measurement plan belongs in the design before cutting.
Define what the test can establish

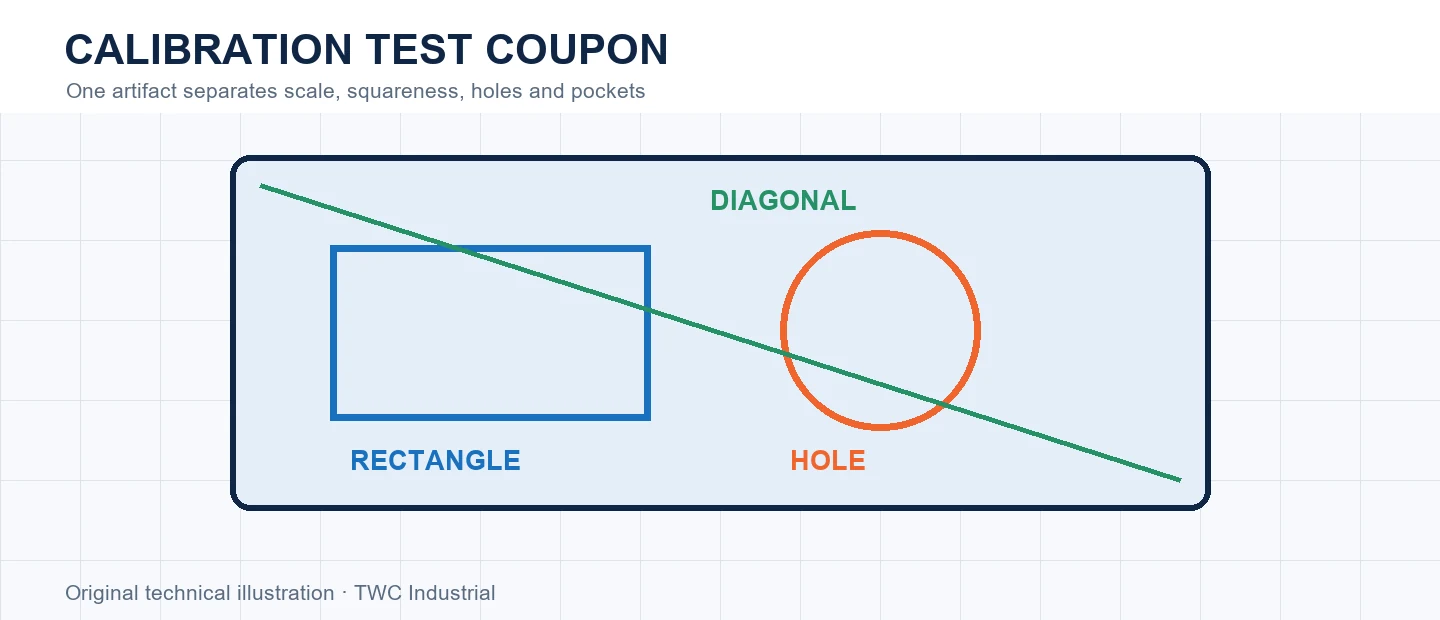

An outside profile and inside pocket respond oppositely to cutter-diameter error. Two sizes along one axis help distinguish fixed offset from proportional scale. Diagonals add angular information, while repeated holes reveal spread and location effects.
Control the measurement
Choose dimensions that fit the available instruments and leave enough edge for reliable contact. Add labels or a coordinate map. Deburr only by a controlled method so the measurement surface is not rounded unpredictably. Measure in a fixed order and retain raw values.
Read the error pattern
If outside features are large and inside features small, tool size or compensation is a candidate. Error proportional to feature length suggests scale. Diagonal disagreement suggests squareness. A trend across positions suggests geometry, support or temperature.
Use a repeatable test plan
Record machine state, warm-up condition, location, direction, tool or probe, stock, instrument and operator method. Repeat the measurement rather than keeping only the best result. For design a cnc calibration coupon that reveals errors, compare magnitude and pattern with the intended tolerance. A result without conditions cannot distinguish a configuration change from temperature, compliance, measurement force or setup variation.
Correct one layer at a time
Begin with the evidence supported by the test. One nominal square cannot isolate all contributors, and tuning the machine to that single artifact can overfit one size and tool. After a mechanical or configuration change, return to the same artifact and measurement sequence. Avoid stacking CAM offsets, controller compensation and drawing changes because several corrections can cancel at one size while making another size worse.
Separate measurement error from machine error
Repeat the reading without moving the machine, then repeat after returning to the feature through the same path and through the opposite direction when appropriate. This helps distinguish instrument and contact variation from positioning behavior. Compare a second instrument or reference only when its capability and setup are understood. For this topic, If outside features are large and inside features small, tool size or compensation is a candidate. Error proportional to feature length suggests scale. Diagonal disagreement suggests squareness. A trend across positions suggests geometry, support or temperature. Preserve all raw readings because deleting inconvenient values without an identified cause can make an unstable process look calibrated.
Safety and verification boundary
Follow the machine, controller, spindle, probe and instrument manufacturers’ procedures. Isolate energy before mechanical adjustment, keep body parts clear of motion and verify probe inputs and travel limits at controlled speed. Calibration motion and indicator sweeps can still collide with clamps, stock or fixtures. Keep a new routine under direct supervision.
Decision table
| Feature | Question | Comparison |
| Two X lengths | Scale vs offset | Error by length |
| X/Y rectangle | Axis relation | Sides and diagonals |
| Hole and boss | Tool/offset sign | Inside vs outside |
| Repeated holes | Repeatability | Spread by location |
Worked situation
A 25 mm pocket and 100 mm pocket are both 0.2 mm small. That fixed error differs from a fourfold proportional error. Compare outside geometry and tool definition before changing axis scale.
Practical checklist
- Assign diagnostic purpose.
- Match instrument access.
- Label features.
- Retain raw measurements.
Frequently asked questions
Can one coupon certify the entire machine?
No. It is a diagnostic snapshot for stated tools, locations and conditions.
Can one successful test prove the machine is calibrated?
No. Repeat the test, vary position where relevant and retain measurements so drift and direction-dependent behavior can be distinguished.
Should compensation be the first response to an error?
No. Inspect mechanics, measurement method, setup and configuration before using compensation to address a diagnosed residual error.
