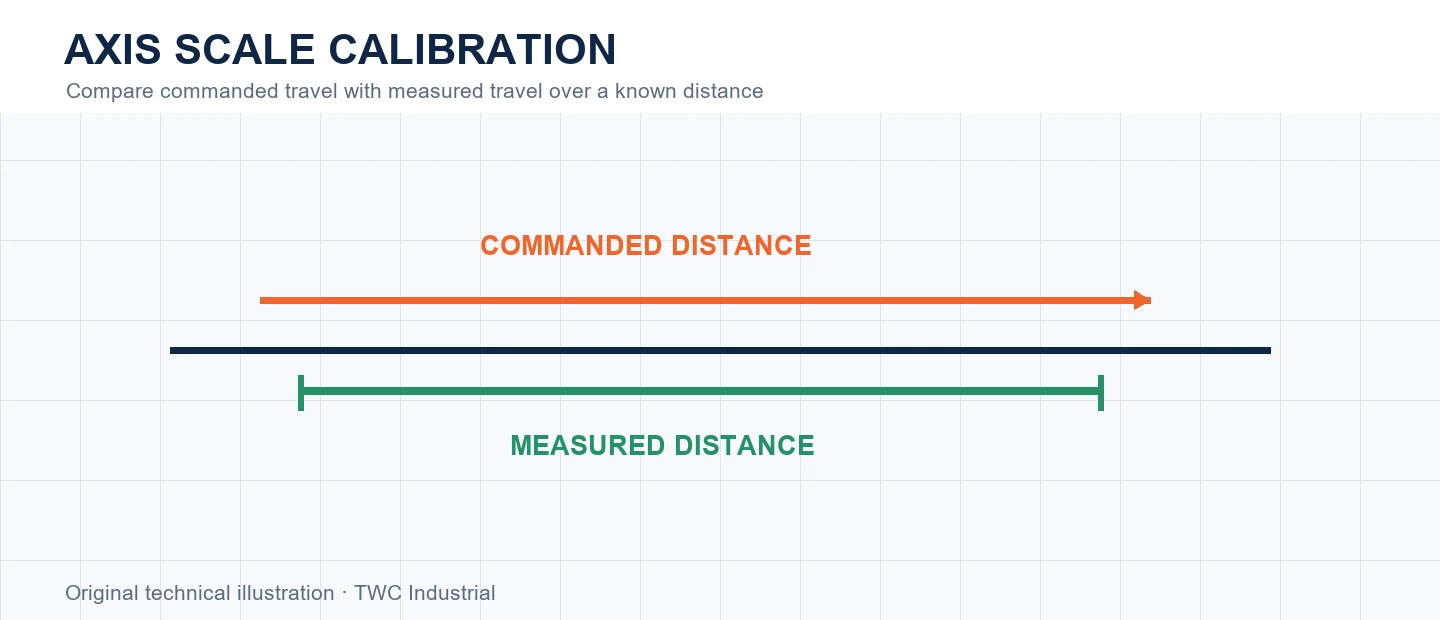

CNC Axis Scale Calibration with Commanded and Measured Travel

Define what the test can establish

A scale error is multiplicative: the discrepancy grows with commanded length. A fixed offset, cutter diameter error or work-coordinate mistake behaves differently. Stepper systems also need velocity and acceleration settings that allow commanded pulses to be executed reliably.

Control the measurement

Use a traceable or otherwise suitable length reference and mounting method. Approach from a consistent direction to limit reversal effects, command a known distance and record actual travel. Repeat the move, then test another distance and reverse direction separately.

Read the error pattern

If measured/commanded ratio stays consistent over several lengths, scale is a candidate. A constant difference suggests offset. Variation by location suggests screw pitch or geometry. Random variation demands stabilization before any scale calculation.

Use a repeatable test plan

Record machine state, warm-up condition, location, direction, tool or probe, stock, instrument and operator method. Repeat the measurement rather than keeping only the best result. For cnc axis scale calibration with commanded and measured travel, compare magnitude and pattern with the intended tolerance. A result without conditions cannot distinguish a configuration change from temperature, compliance, measurement force or setup variation.

Correct one layer at a time

Begin with the evidence supported by the test. Calibrating from one machined feature can mix cutter size, deflection, backlash and measurement error into the axis scale. After a mechanical or configuration change, return to the same artifact and measurement sequence. Avoid stacking CAM offsets, controller compensation and drawing changes because several corrections can cancel at one size while making another size worse.

Separate measurement error from machine error

Repeat the reading without moving the machine, then repeat after returning to the feature through the same path and through the opposite direction when appropriate. This helps distinguish instrument and contact variation from positioning behavior. Compare a second instrument or reference only when its capability and setup are understood. For this topic, If measured/commanded ratio stays consistent over several lengths, scale is a candidate. A constant difference suggests offset. Variation by location suggests screw pitch or geometry. Random variation demands stabilization before any scale calculation. Preserve all raw readings because deleting inconvenient values without an identified cause can make an unstable process look calibrated.

Safety and verification boundary

Follow the machine, controller, spindle, probe and instrument manufacturers’ procedures. Isolate energy before mechanical adjustment, keep body parts clear of motion and verify probe inputs and travel limits at controlled speed. Calibration motion and indicator sweeps can still collide with clamps, stock or fixtures. Keep a new routine under direct supervision.
