Choosing CNC Cutter Diameter: Access, Stiffness and Removal Rate

Understand the physical relationship

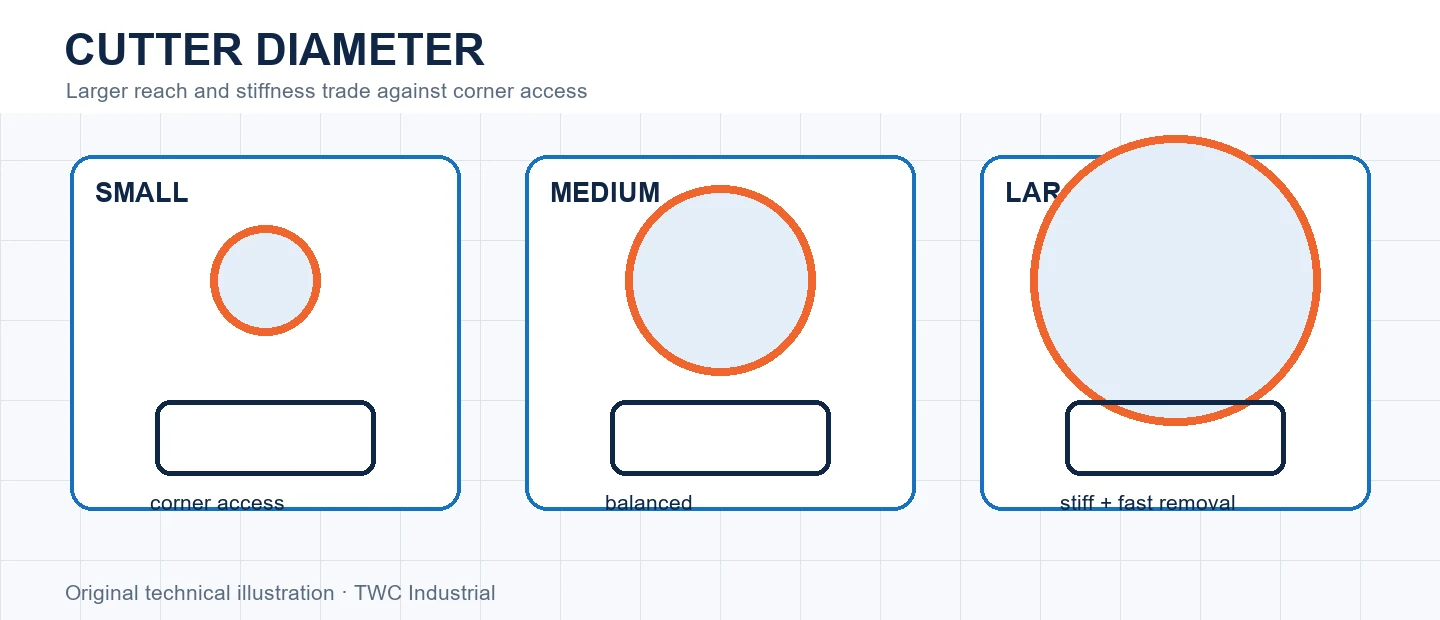

A cutter cannot enter a channel narrower than its diameter or create an internal radius smaller than its own radius. Increasing diameter can improve stiffness, but it also increases swept area and may demand torque, feed or holder capacity the machine cannot provide.

Connect geometry to the cut

Small cutters are more sensitive to projection, runout and chip packing. Large cutters may leave significant material in narrow corners. Remaining-stock analysis can divide work between a robust rougher and a detail tool instead of making the smallest cutter remove everything.

Choose for the complete application

Check spindle collet range, permitted cutter size, available RPM and the cutter manufacturer's operating data. Review entry geometry, minimum feature width and holder clearance. Tool diameter must also fit dust collection and fixture access.

Run a controlled comparison

Cut representative geometry in the intended material before committing valuable stock. Hold tool identity, projection, workholding and origin constant while changing one relevant variable. Record chips, sound, heat, edge condition and measured geometry. For choosing cnc cutter diameter: access, stiffness and removal rate, a completed path is not enough; the result must show that the chosen diameter reaches required geometry without sacrificing controlled load. Keep the inspected coupon, photograph and CAM revision together.

Create a traceable tool record

Record manufacturer, part number, cutting diameter, shank, cutting length, flute form and measured projection. Add the tested material and operation rather than labeling the cutter only by color or drawer. Diameter changes access, stiffness, chip space, offset and machine demand together. Do not transfer an unexplained offset or operating value to a visually similar tool.

Interpret the evidence before changing CAM

If the cut differs from expectation, separate tool geometry from machine calibration, material variation, workholding and engagement. Measure more than one feature and inspect whether error changes with depth, direction or time. A consistent size offset suggests a different investigation from a mark repeating once per revolution or heat appearing only in corners. For this topic, diameter changes access, stiffness, chip space, offset and machine demand together. Correct the identified layer, repeat the controlled coupon and document the comparison instead of accumulating compensating settings whose purpose is no longer known.

Verify the full cutting envelope

Recalculate and simulate the cutter, shank and holder at the deepest feature, entry and retract. Confirm the physical tool matches the library and posted program. Review workholding, extraction, guarding and stop controls. A safe-looking centerline cannot prove the collet nut, dust shoe or released stock will remain clear.

Decision table

Practical checklist

1. Measure narrowest feature.
2. Check internal radius.
3. Verify spindle capacity.
4. Plan remaining-stock cleanup.
