ZMDE CNC Flame Plasma Cutter: In-Depth Review for Steel Fabrication Shops

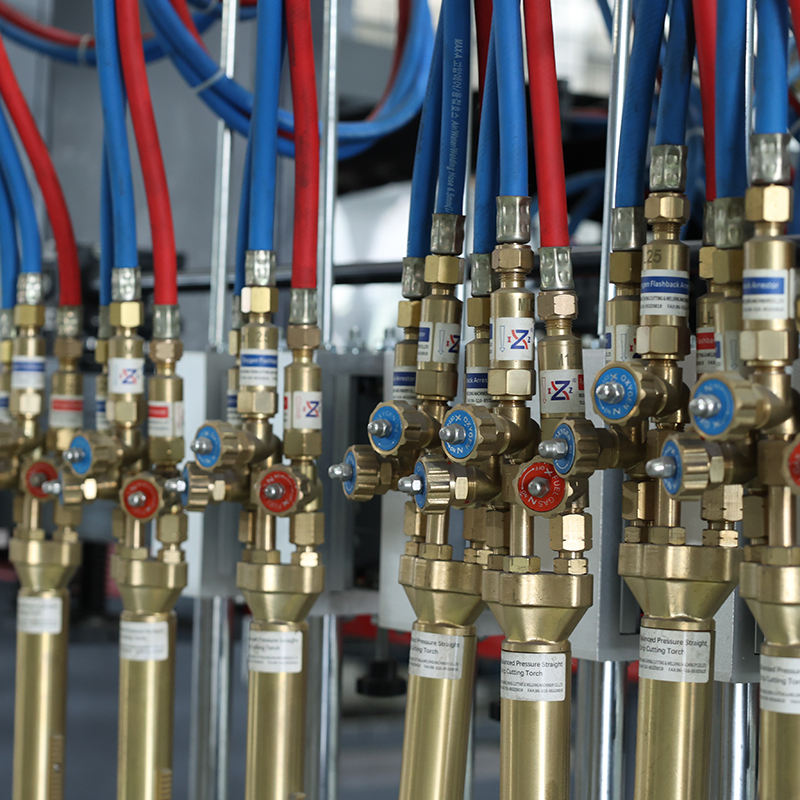

The ZMDE Flame CNC Plasma Cutter is a heavy-duty gantry-style machine built for cutting H-beams, steel plates, and structural sections in automated welding production lines. Manufactured by ZMDE Co., Ltd. in Shandong, China, it combines flame (oxy-fuel) and plasma cutting in one system. This review breaks down every detail factory owners and production managers need before investing—specifications, build quality, real-world performance, costs, support, and practical tips. All information comes directly from supplier data, product sheets, and industry standards. No user reviews exist yet on Alibaba, so this is a pre-purchase technical evaluation.
Company Background: Who is ZMDE?
ZMDE Co., Ltd. was founded in 2013 and operates two major facilities:
| Location | Focus | Size |
|---|---|---|
| Shanghai Headquarters | R&D, AI, Intelligent Building Systems | 32,000 m² |
| Weifang, Shandong Base | Manufacturing, H-beam mother machines | 66,600 m² |
The company employs 193 staff and holds ISO 9001, EU CE, and over 1,000 intellectual property authorizations. They are recognized as a national “small giant” enterprise and Shandong Province high-tech demonstration unit. ZMDE has delivered over 10,000 sets of intelligent industrial equipment globally and maintains long-term partnerships with major Chinese steel groups.
They exhibit annually at FABEX Saudi Arabia, FABTECH USA, METALEX Vietnam, and China CNC Machine Tool Fair, showing consistent international presence since 2014.
Machine Overview & Design

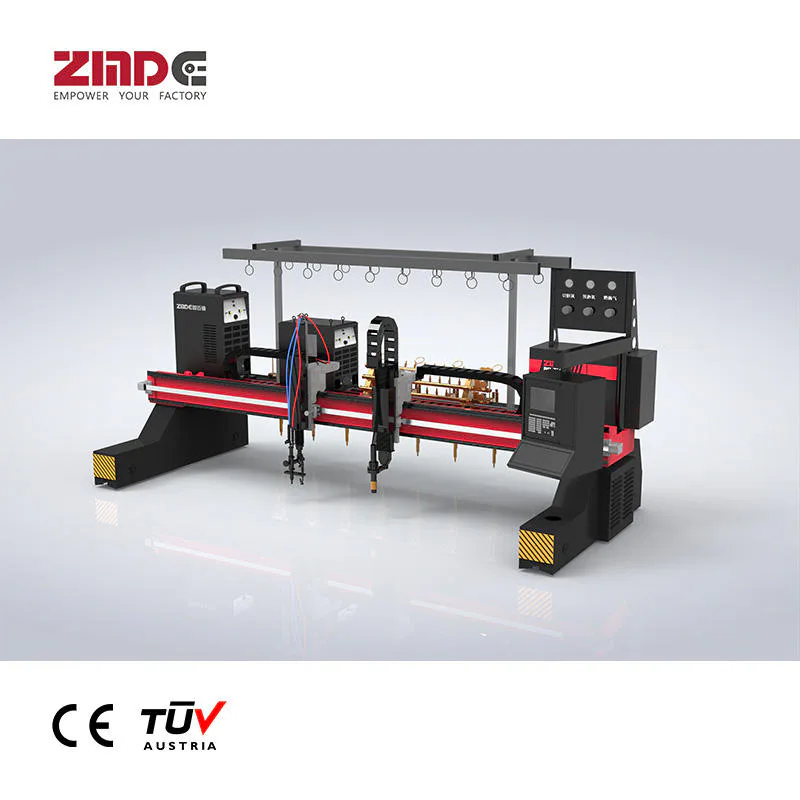

This is a gantry-type dual-mode cutter (flame + plasma) optimized for H-beam web/flange cutting, steel plate beveling, and straight strip cutting in structural steel fabrication.
Core Structure
- Gantry frame: High-strength welded beams with stress-relief treatment
- Dual-axis linear guide rails: Dust-resistant, no lubrication needed
- Crossbeam: 5.4 meters wide (effective cutting width ~4.2m)
- Longitudinal rails: 21 meters (custom lengths available)
- Height adjustment: Automatic THC (Torch Height Control) via arc voltage sampling
Drive System
| Component | Brand/Spec |
|---|---|
| Servo Motors | Panasonic (Japan) |
| CNC Controller | Hypertherm Edge Connect or ZMDE custom |
| Drivers | Panasonic A6 series |
| Reducer | Precision planetary gearbox |
| Rack & Pinion | High-precision grinding grade |
The system uses bilateral synchronous drive to prevent gantry skew during high-speed moves.
Cutting Capabilities (Verified Specs)
| Mode | Material | Thickness | Gas | Speed |
|---|---|---|---|---|
| Plasma | Carbon steel | 5–60 mm (clean cut) | Compressed air | Up to 10 m/min |
| Edge start: 80 mm | N₂, O₂, H35 | |||
| Stainless steel | 5–50 mm | N₂, H35 | 0.5–3 m/min | |
| Flame (Oxy-fuel) | Carbon steel | 6–150 mm (standard) | Oxygen + Acetylene | 50–750 mm/min |
| Max: 300 mm (with preheat) | Oxygen + Propane |
Note: Plasma thickness depends on power source (not included). Common pairings: Hypertherm Powermax 125 (25 mm), HPR260XD (38 mm), XPR300 (50 mm clean).
Key Features Factory Managers Should Know
1. Automatic Nesting & Programming
- Includes FastCAM or ZMDE Nest software
- Supports DXF, DWG, IGES import
- Auto-nesting reduces material waste by 6–12%
- Simulation mode prevents collisions
2. Multi-Torch Configuration
- Up to 8 flame torches or 4 plasma + 4 flame
- Ideal for straight strip cutting in light gauge steel
- Independent height control per torch
3. Intelligent Height Control
- Arc voltage THC for plasma
- Capacitive sensor for flame
- Maintains ±0.5 mm accuracy over warped plates
4. Dust & Heat Resistance
- Sealed electrical cabinets (IP54)
- Rails protected by bellows covers
- Operates in 0–50°C shop environments
5. Safety & Compliance
- CE marked (EU market access)
- Emergency stop chain across entire gantry
- Light curtains (optional)
- Fume extraction ports (connect to central system)
Build Quality & Durability Assessment
Frame & Welding
- Main beams: Q355B steel, fully annealed
- CNC machined mating surfaces
- Welds inspected via ultrasonic testing
- Painted with anti-corrosion epoxy primer + polyurethane topcoat
Rail System
- Hiwin or PMI linear rails (Taiwan)
- Hardness: HRC 58–62
- Rated for 100,000+ hours in dusty conditions
Expected Lifespan
| Component | Estimated Life |
|---|---|
| Gantry frame | 15–20 years |
| Linear rails | 8–12 years |
| Servo motors | 30,000+ hours |
| Plasma consumables | 1–3 hours per set |
| Flame tips | 20–50 hours |
Installation & Integration Guide
Space & Foundation
| Requirement | Specification |
|---|---|
| Floor load | ≥5 tons/m² |
| Foundation | Reinforced concrete, ±5 mm level tolerance |
| Clearance | 1.5m around machine |
| Height | Minimum 4.5m ceiling |
Utilities Needed
| Utility | Consumption |
|---|---|
| Power | 30–50 kVA (plasma source dependent) |
| Compressed air | 6–8 bar, 500 L/min, dry & oil-free |
| Oxygen | 99.5% purity, 10 bar |
| Fuel gas | Acetylene (4 bar) or Propane (2 bar) |
Integration with H-Beam Line
[End Carriage] → [ZMDE H-Beam Assembler] → [Welding] → [Straightening] → [ZMDE Cutter] → [Painting]- Outputs DXF from Tekla/SDS2 directly
- Conveyor interface via PLC (Modbus/RS485)
- Sync start/stop with upstream machines
Operating Costs Breakdown (Per 8-Hour Shift)
| Item | Cost (USD) | Notes |
|---|---|---|
| Electricity | 8–15 | 30 kW avg draw |
| Plasma consumables | 25–60 | Hypertherm 260A |
| Flame gas | 12–18 | 150 mm carbon steel |
| Air filter | 2 | Replace monthly |
| Total | 47–95 | Varies by material/thickness |
Tip: Use nitrogen for stainless → higher cost but cleaner edge.
After-Sales Support & Warranty
| Service | Details |
|---|---|
| Warranty | 12 months from shipment |
| Free parts | PLC, drivers, sensors (non-consumable) |
| Response time | ≤24 hours (China), ≤48 hours (international) |
| Training | 3–5 days on-site or remote |
| Spare parts | 2-year stock in Weifang warehouse |
| Remote diagnostics | Via Ethernet (TeamViewer) |
Alibaba offers 1-year free replacement under Trade Assurance.
Q&A: 15 Critical Questions Answered
1. Can it cut beveled edges? Yes. ±45° mechanical bevel head available (add-on).
2. What plasma source should I pair? For 25 mm: Powermax125 For 38 mm: MaxPro200 or HPR260XD For 50 mm: XPR300
3. Is the software in English? Yes. Full English interface + manual.
4. Can it cut round pipe? No. Flat plate/H-beam only. (See ZMDE pipe cutters separately.)
5. How loud is it? Plasma: ~95 dB Flame: ~85 dB Recommend ear protection.
6. What file formats does it accept? DXF, DWG, NC, ESSI, IGES.
7. Does it need a chiller? Yes, for plasma >125A. Water-cooled torch.
8. Can I add a drilling spindle? Yes. ZMDE offers combo drill + plasma models.
9. What’s the cutting accuracy? ±0.5 mm over 6m length (ISO 9013).
10. How to reduce dross? Use correct amperage, speed, and gas. ZMDE provides parameter tables.
11. Is financing available? Yes via Alibaba Credit or Chinese banks (LC terms).
12. Can I visit the factory? Yes. Weifang plant open for inspection (appointment needed).
13. What’s the lead time? 45–60 days standard. 90 days with customization.
14. Does it support Industry 4.0? Yes. OPC-UA, MQTT, data logging to MES.
15. How to clean the table? Slag removal via pneumatic knock-out or manual. Water table option available.
Pro Tips Before You Buy
- Request a live cutting demo on your exact material (send sample plate).
- Ask for nesting efficiency report using your typical parts.
- Confirm plasma source compatibility in writing.
- Budget for gas contract (oxygen, nitrogen) — often overlooked.
- Plan fume extraction from day one — mandatory in EU/US.
- Train 2 operators — one for CNC, one for maintenance.
- Order 6 months of consumables upfront to avoid downtime.
- Use Alibaba Trade Assurance — full refund if specs not met.
- Check local emissions laws — plasma produces ozone.
- Document everything — photos, videos, test reports.
Comparison with Similar Machines
| Feature | ZMDE | ESAB (USA) | Koike (Japan) |
|---|---|---|---|
| Price (USD) | 16–18k | 45–60k | 38–55k |
| Max Flame Thickness | 300 mm | 200 mm | 250 mm |
| CE Certified | Yes | Yes | Yes |
| Local Service (Asia) | Strong | Limited | Moderate |
| Software | FastCAM | Columbus | Koike CAD |
| Warranty | 1 year | 1–2 years | 1 year |
ZMDE wins on cost-to-capability for high-volume Asian/European shops.
Who Should Buy This Machine?
- Steel structure fabricators running 50–500 tons/month
- H-beam production lines needing in-line cutting
- Job shops cutting mixed thickness (5–150 mm)
- Export-oriented factories (CE mark = EU access)
Not ideal for:
- Thin sheet (<3 mm) — use fiber laser
- High-precision aerospace parts — tolerance too loose
- Mobile/field cutting — too large
Final Verdict
The ZMDE CNC Flame Plasma Cutter delivers industrial-grade performance at a mid-market price. Its robust build, dual-mode flexibility, and full automation make it a strong backbone for H-beam lines. While independent long-term reviews are absent, the company’s track record, certifications, and transparent specs inspire confidence.
For factory owners scaling structural steel production, this machine offers high ROI through reduced labor, material waste, and rework. Pair it with proper training, gas supply, and plasma source — and it becomes a 24/7 workhorse.
Recommended with eyes open: Request a factory visit or video demo before committing.
